Overview
This article outlines the steps necessary to turn on on-device tipping for foreUP Payments 2.0
Preconditions
The following conditions must be met before following the steps below:
- Must be using the foreUP Payments 2.0 as your integrated credit card processor
- Must be utilizing the Lane 3000, Lane 3600, or Link 2500 credit card devices at the workstation foreUP terminal you want to enable on-device tipping
How to Enable On-Device Tipping
Follow the steps below to enable on-device tipping:
- Log in to www.foreupsoftware.com
- Click on the top-left dropdown and select Settings
- From the first column on the left, select Sales
- From the second column (blue) from the left, select Printing and Terminals

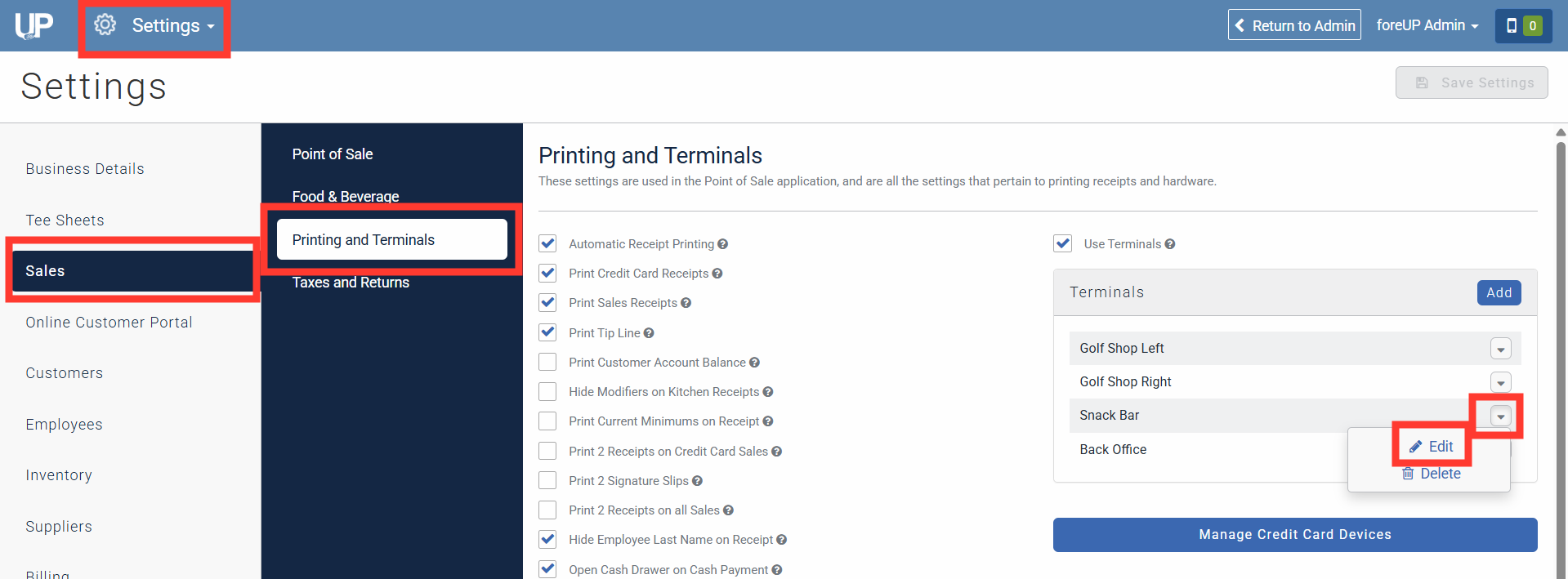

- In the Terminals box on the right, click on the action arrow on the terminal you wish to enable on-device tipping and select Edit
- The Edit Terminal window will pop up from the side

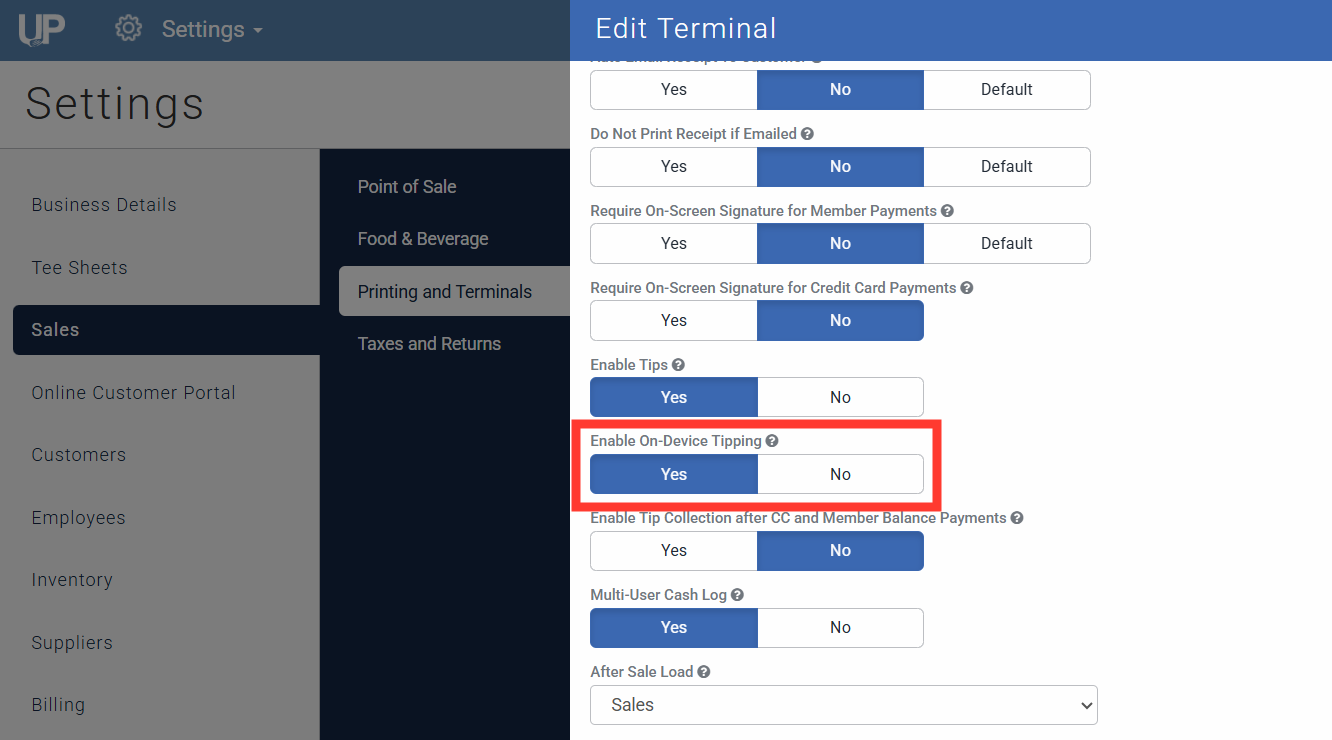

- Scroll down to find the Enable On-Device Tipping settings. Set it to Yes
- Click Save Changes in the bottom right
- Once you have enabled on-device tipping in the terminal settings, the credit card device will go through a reboot sequence to allow for the on-device settings to take effect. IMPORTANT: This rebooting sequence can take up to five minutes to initiate and five minutes to complete. Please allow the device to finish the rebooting sequence before sending a transaction to the device
- Once the device has rebooted, the on-device tipping will be ready to use on the credit card device registered to that foreUP terminal!
FAQ
Q: What credit card devices support on-device tipping?
A: The Lane 3000, Lane 3600, and the Link 2500
Q: What does the on-device tipping workflow look like?
A: Here is the workflow for on-device tipping:
- The foreUP user added items to the shopping cart

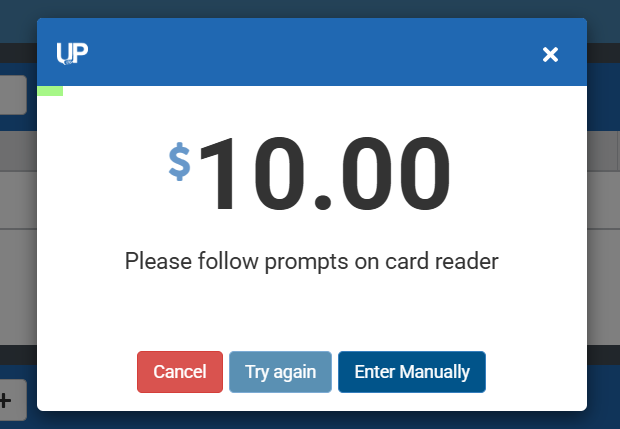

- The foreUP user clicks "Credit Card" in foreUP to send the shopping cart to the device for payment, and will receive a pop-up window in foreUP letting the user know the transaction has been sent to the device
- The credit card device will show the transaction total and prompt the cardholder to leave a tip:

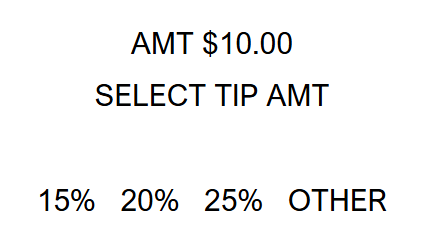

- If the cardholder selects "Yes" to adding a tip, they can then select from the following tip options:

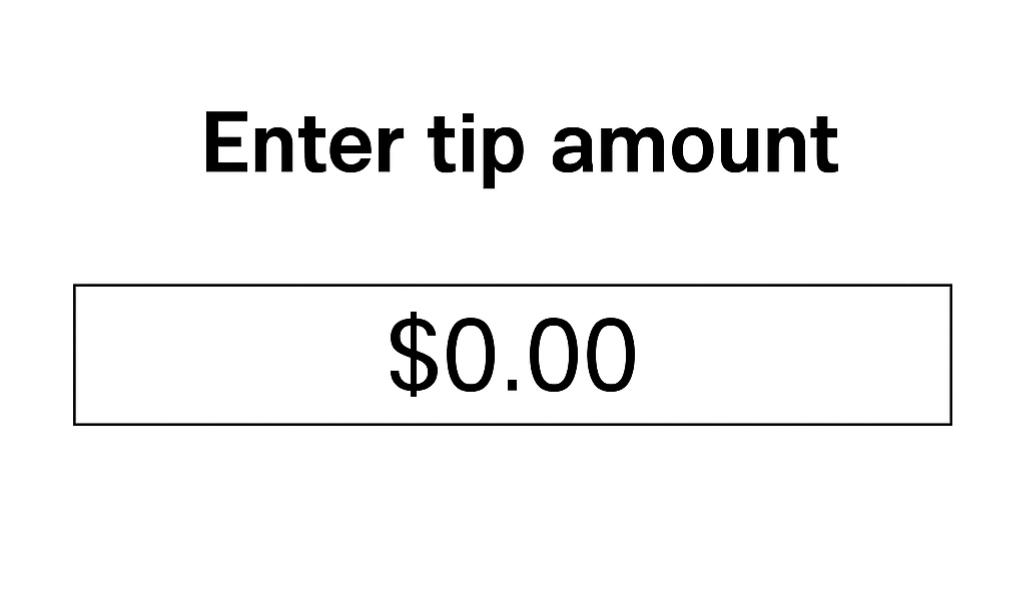

- If they choose the OTHER option, they will manually key in the tip amount on the keypad of the credit card device

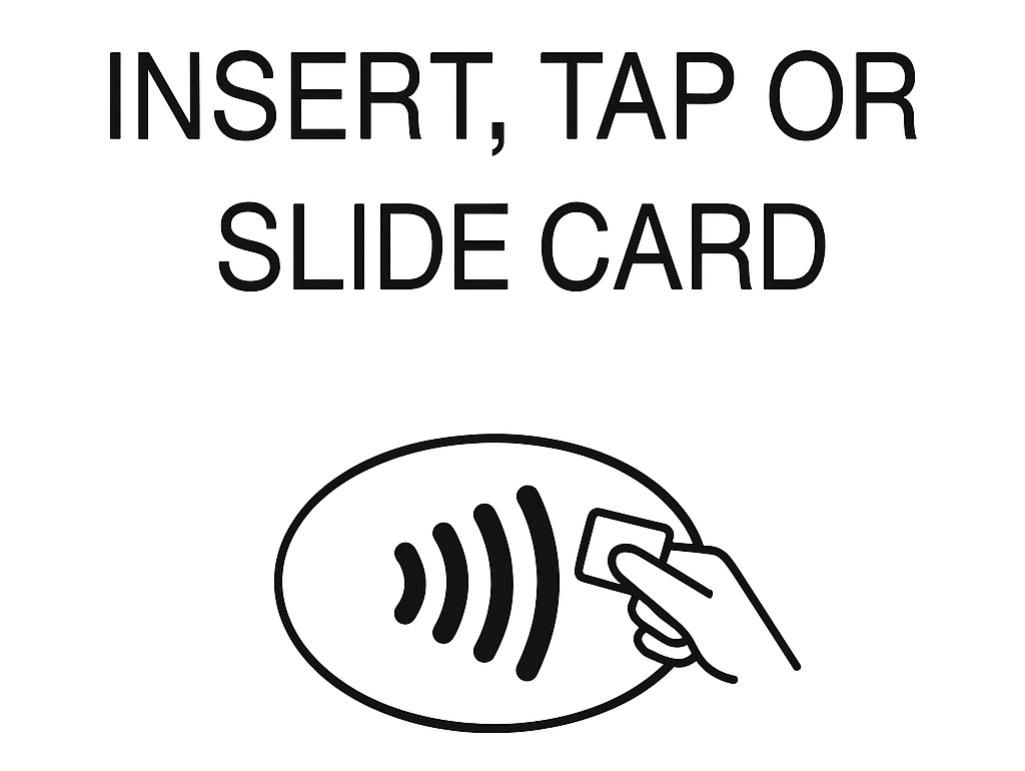

- Once the tip has been selected, the credit card device will then prompt the cardholder to tap/insert/swipe their credit card:
- Once the cardholder has tapped/inserted/swiped their card, the credit card device will then ask them to confirm the new total (original amount + tip):
- Once the cardholder has confirmed the new total, the transaction will process and be completed

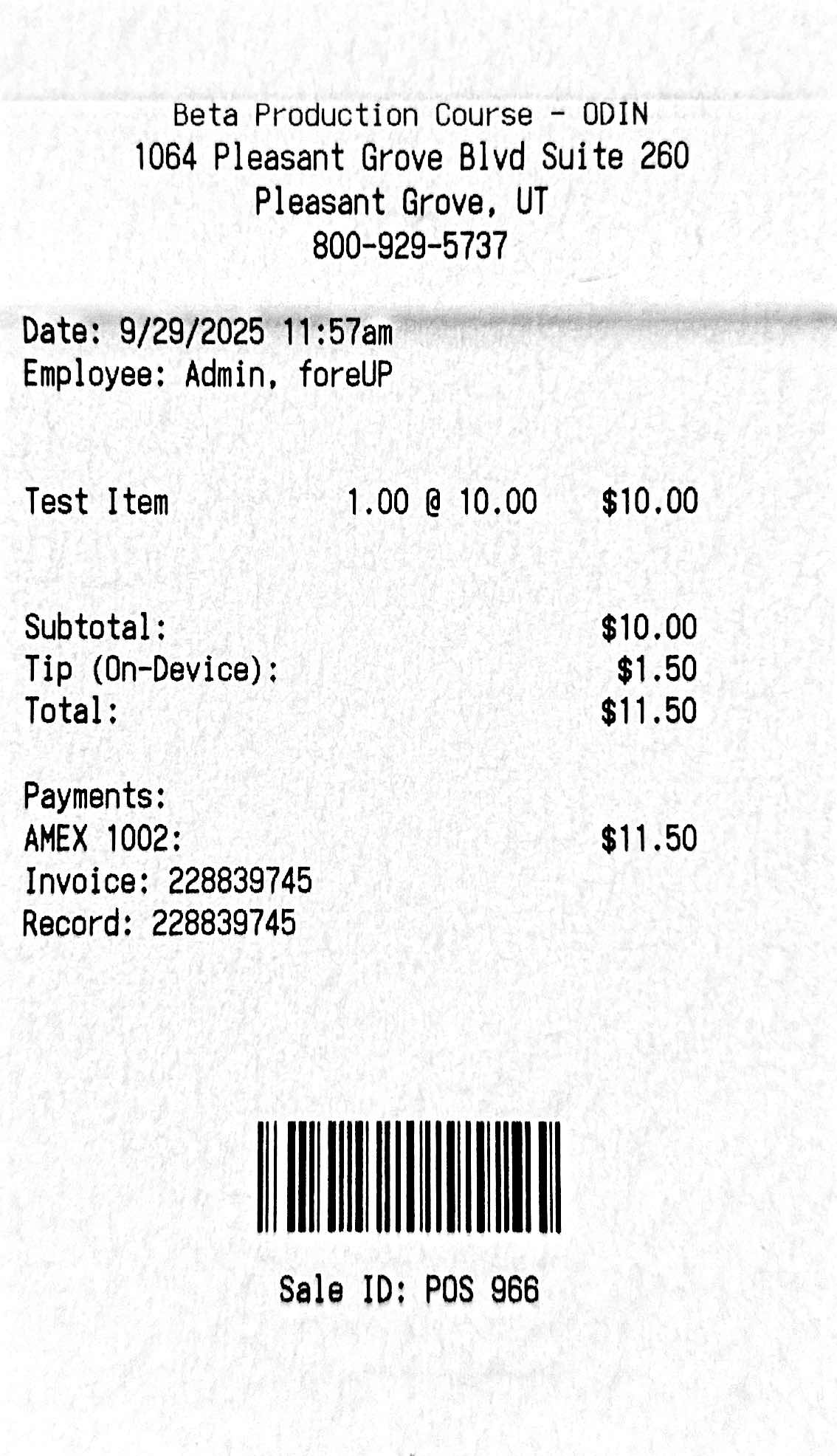

- The receipt that is printed will have the tip amount on it

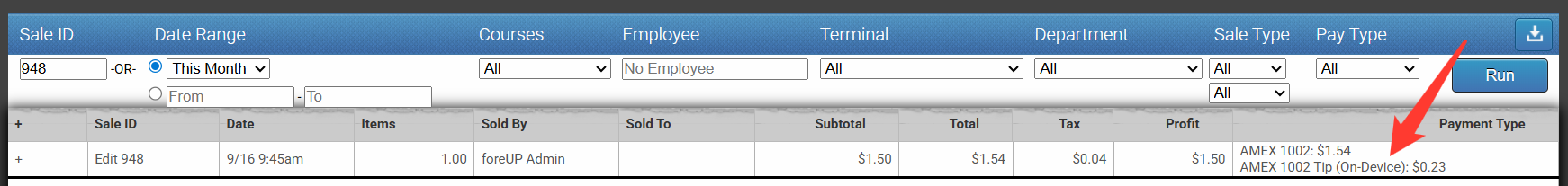

- When viewing the transaction in the foreUP sales reports, in the payment details, the tip amount will show that it specifically came from the on-device tipping workflow
Q: Once on-device tipping has been enabled, will that prompt for every transaction completed on that terminal to follow the on-device tip workflow?
A: Yes, once on-device tipping has been enabled for a foreUP terminal, EVERY sales transaction that is processed through that terminal will prompt the cardholder to leave a tip
Q: How do I turn off on-device tipping?
A: Follow the steps above and set the On-Device Tipping setting to No. The credit card device will go through a rebooting sequence to remove the on-device tipping setting
