Overview:
Printing barcodes and attaching them to inventory items is common practice for golf courses. Generating Barcodes in the Inventory module allows this setup simple and easy.
Preconditions:
Preconditions are the necessary settings, permissions, and items created in your software to allow the feature to work.
- Access to the Inventory Module
- Employee Permission to Print Barcodes in Inventory Module
Steps:
Follow the below steps to generate and print barcodes:
- Go to the Inventory module
- Find the items you are wanting to create barcodes for.

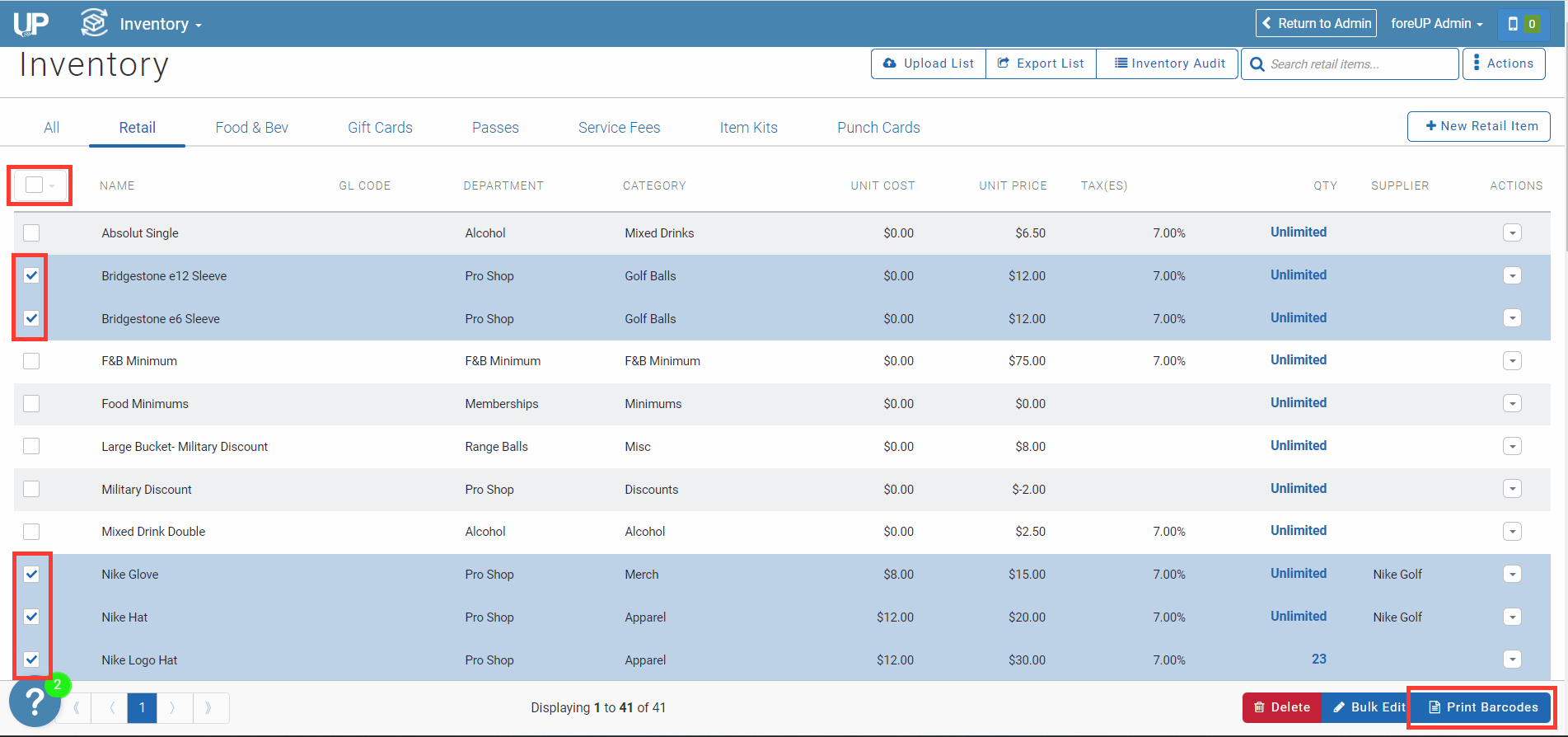

- Under the checkbox selection column on the left, check each of the boxes of the Inventory Items you would like to create a barcode for and in the bottom right corner click the "Print Barcodes"
- Inside the Print barcodes settings, Select the label format size needed (5160 for laser printers, 8160 for inkjet printers. 5267 for laser printers, 8167 for inkjet printers), as well as the desired Label Style
- Select the "Top Margin" field and set it to 15 mm

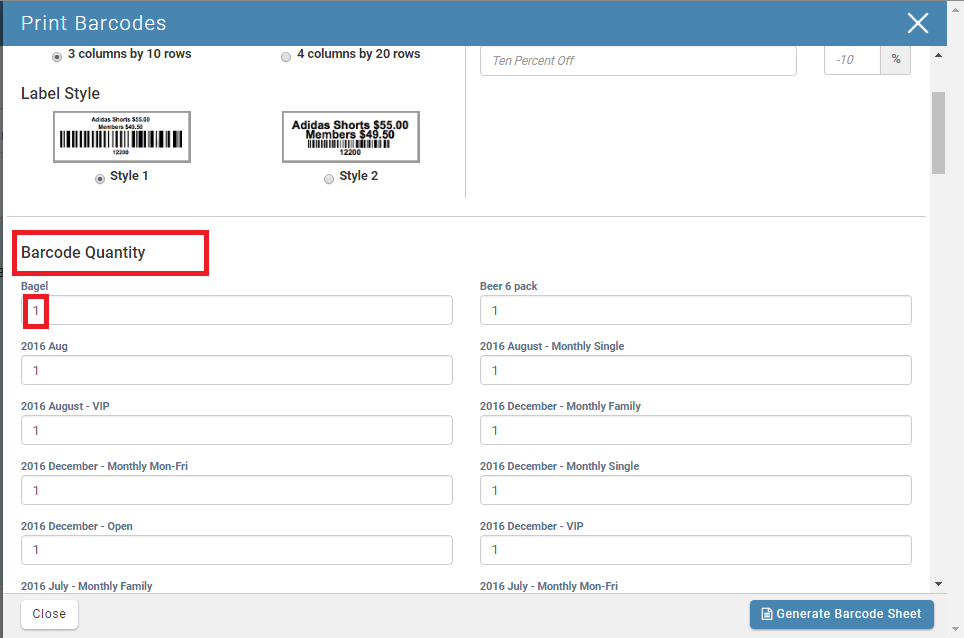

- Enter the number of bar codes needed for each item(s)
- Click "Generate Bar Code Sheet" (The bar code sheet will open in a new tab)
- Click on the Print Icon in the top right
- Be sure to have the proper printer selected and in the Print Preview window Click "More Settings" and set the Scale to "Custom." From there, set the custom scale to "100" and click "Print".
It is recommended to print a test sheet first on a regular sheet of paper to ensure the page lines up properly before printing on the barcode label sheet.
For further assistance, please contact our Support Team at support@foreup.com or 800-929-5737
